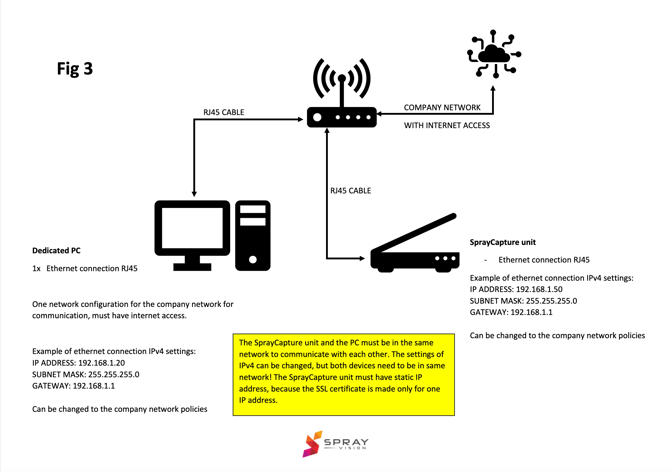

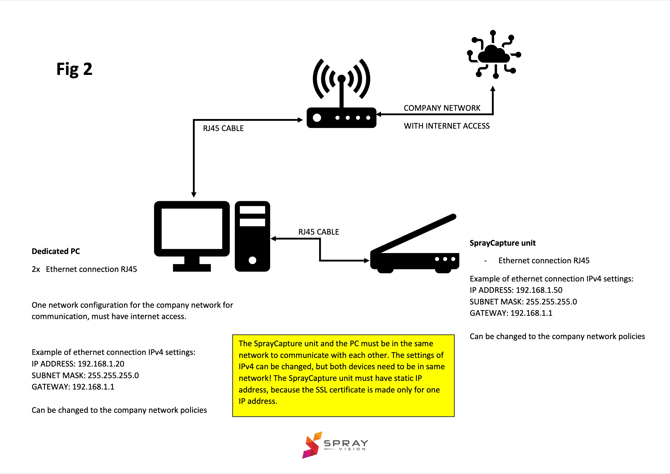

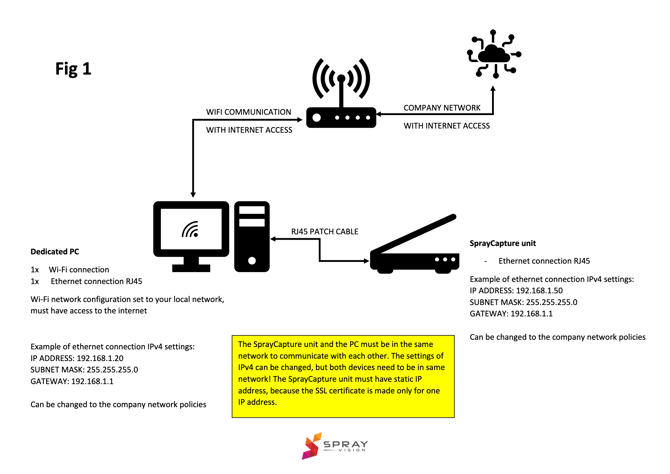

Network Connection Schematics Between the SprayCapture unit and Your IT Environment

This short guide depicts the possible connection schematics between the SprayCapture unit and your company IT devices.
